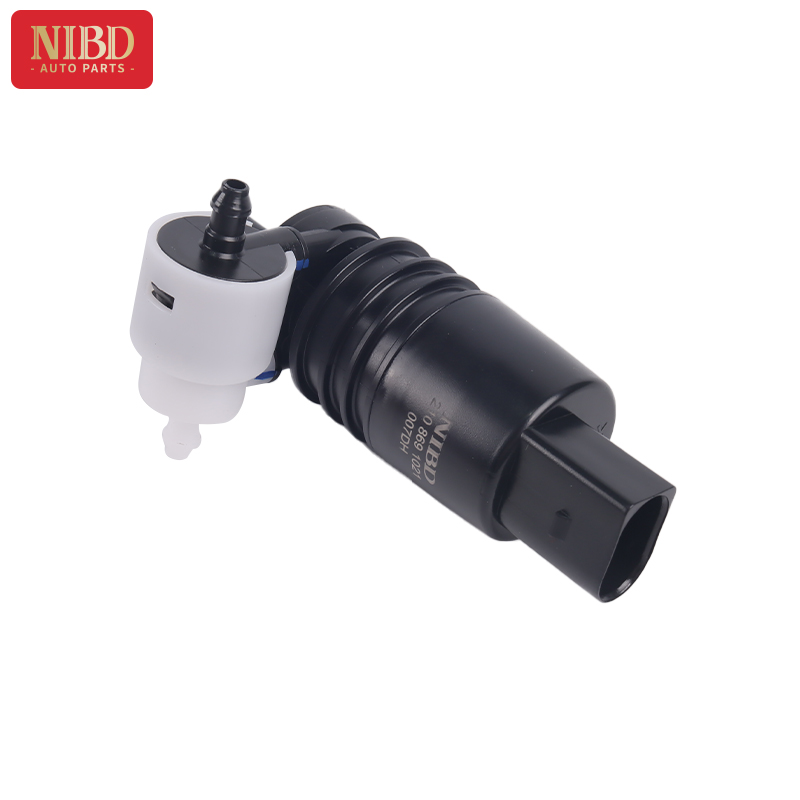

Washer Pump A2108691021 For Mercedes W210

A water jet motor is a device that pressurizes and ejects a stream of water through a drive mechanism. Its working principle can be divided into the following steps:

1. Drive mechanism start: water jet motor is usually driven by an electric motor or pneumatic drive device. When the drive mechanism is started, it will provide power to the working parts of the water jet motor. 2.

2. water flow into the pump body: water jet motor inside a pump body, water flow through the inlet into the pump body. There is usually one or more pistons inside the pump body. 3.

3. Piston movement: under the power of the drive mechanism, the piston begins to move. The movement of the piston changes the volume inside the pump body, resulting in a pressure change. 4.

4. Pressure increase: With the movement of the piston, the volume inside the pump body decreases, the water flow is compressed and the pressure gradually increases. This realizes the pressurization of the water flow.

5. Valve control: water jet motor inside the valve to control the flow of water in and out usually. The opening and closing of the valve can be adjusted as needed to control the working status of the water jet motor and the output of the water flow.

6. High-pressure water jetting: when the pressure reaches a set value, the water jet motor through the nozzle will be high-pressure water jet. The design of the nozzle can be adjusted according to the shape and direction of the water flow.

7. Maintenance of operating status: The water jet motor will continue to operate to maintain the pressurization and jetting of water until the drive mechanism is stopped or adjusted.

In short, the water jet motor pressurizes the water flow through the drive mechanism and controls the water flow in and out and jetting through the valves and nozzles, realizing the generation and jetting of high-pressure water flow. Its working principle is based on the movement of the piston and pressure changes, and through rational design and control, it is able to provide strong water flow pressure and flow rate for a variety of cleaning, rinsing, spraying and other applications.
