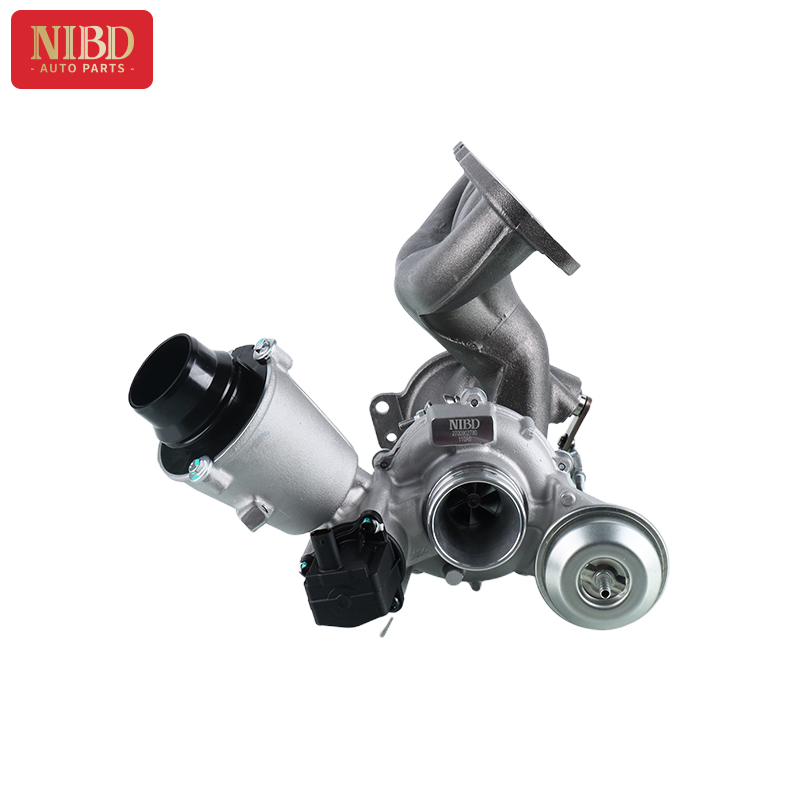

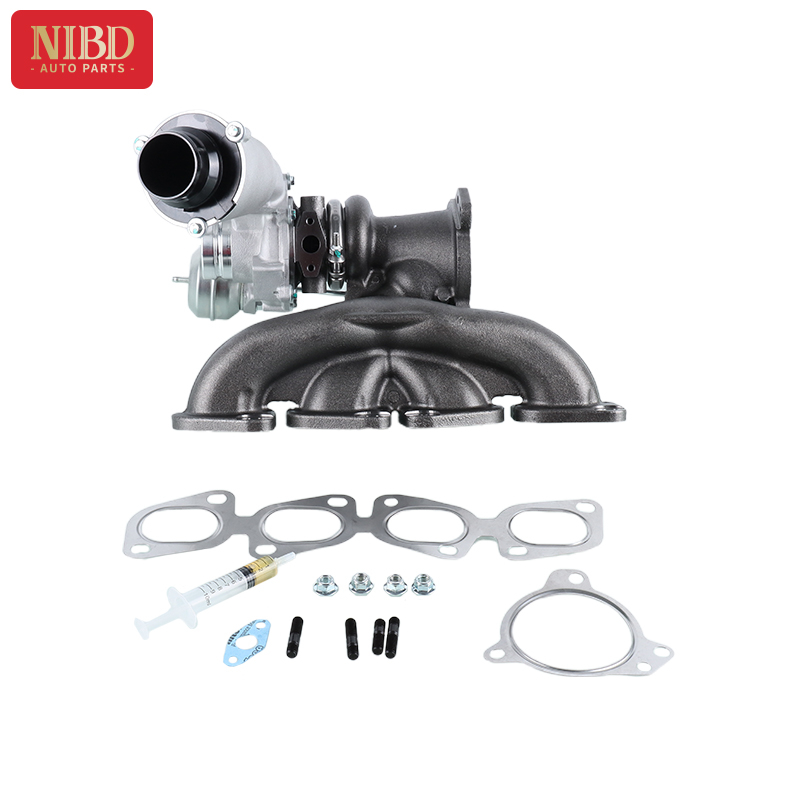

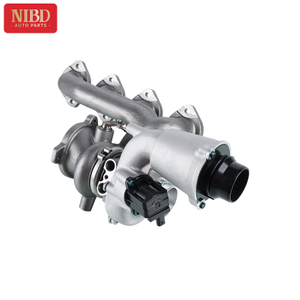

Turbocharger A2700902780 For Mercedes X156 W246 W176

Automobile turbocharger is a complex device composed of multiple parts, mainly including the following components:

1. Turbine: Turbine is the core component of turbocharger, which is divided into two parts: turbine and compressor. The turbine part is composed of turbine blades, which are driven by exhaust gas to rotate; The compressor part is composed of compressor blades, which are driven by the rotation of the turbine to compress the intake air.

2. Intermediate shell: The intermediate shell connects the turbine and the compressor to support and seal. The middle shell also includes bearings and lubrication system to ensure the normal operation of the turbocharger.

3. Compressor chamber: The compressor chamber is the space inside the turbocharger, which is used to accommodate compressor blades and compress intake air. The design and structure of the compressor chamber have an important influence on the pressurization effect and performance.

4. Air inlet and air outlet: the air inlet is connected with the air inlet of the engine to send the compressed air into the combustion chamber of the engine; The air outlet is connected with the air inlet of the engine to discharge the exhaust gas from the turbocharger.

5. Turbocharger control system: Turbochargers are usually equipped with a control system to monitor and adjust the working state of the turbocharger. The control system can adjust the working pressure and supercharging effect of the turbocharger according to the change of engine load and speed.

6. Cooling system: Turbochargers usually need to be equipped with a cooling system to reduce the working temperature of the turbocharger, improve its working efficiency and prolong its service life.

To sum up, the main components of automobile turbocharger include turbine, intermediate housing, compressor chamber, air inlet, air outlet, turbocharger control system and cooling system. These components work together to realize the function of boosting the engine by exhaust gas power and improving power output and combustion efficiency. Turbocharger is an important power booster in modern automobile engines, which is widely used in various automobile types.
