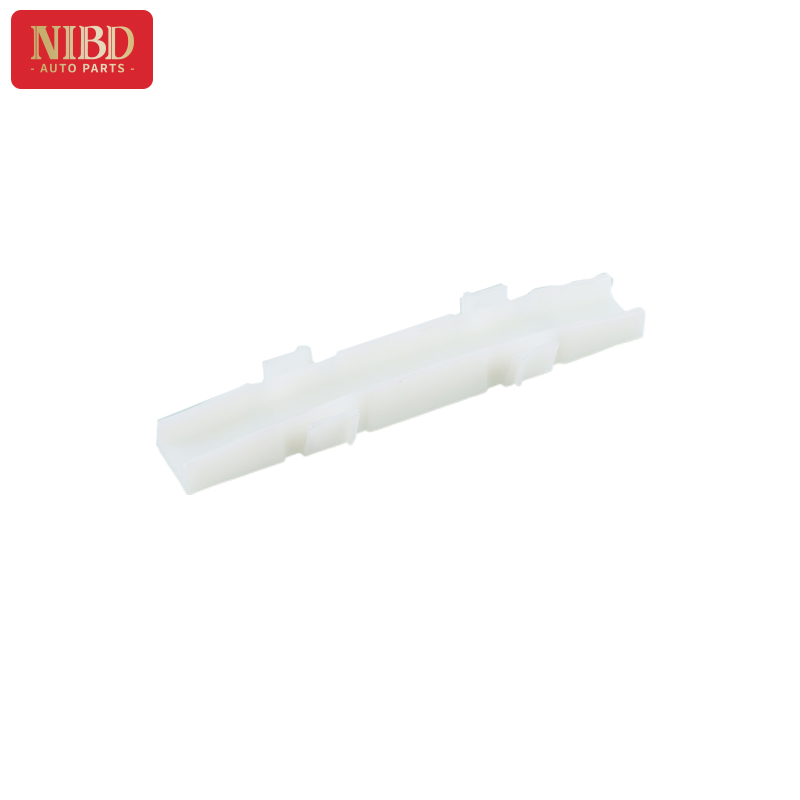

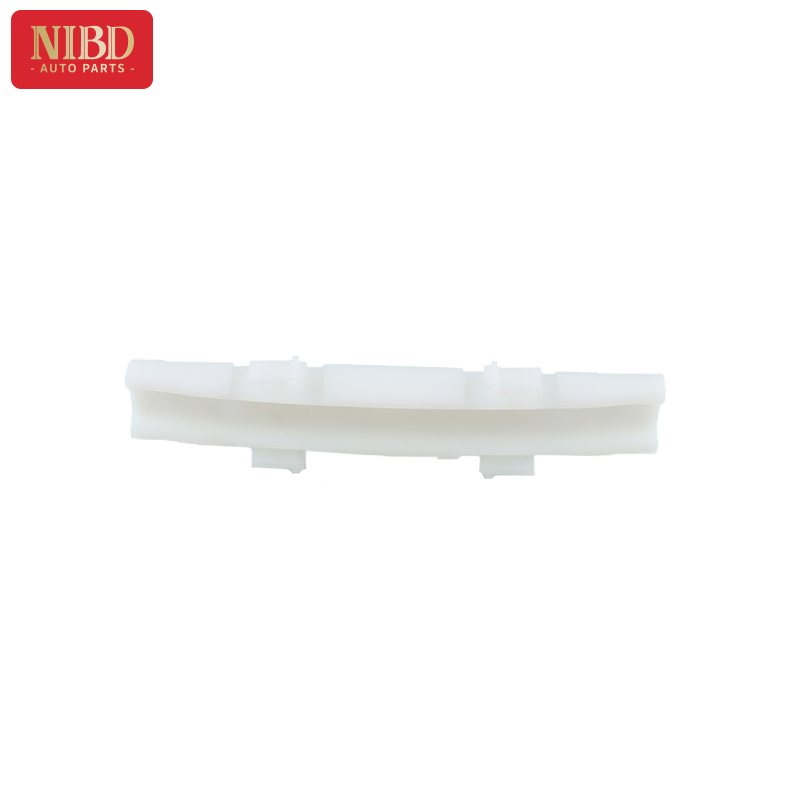

The engine chain guide plate is one of the main structural parts of the automobile engine, which is used to assemble the chain or bearing of the engine, control the vibration of the engine, and reduce the internal noise. It is mainly composed of gear spring guide ring, regulator unit and guide plate three parts. It not only has a damping effect, but also can transmit the power generated by the engine when the speed changes to the various parts
The working principle of the engine chain guide plate is: The engine timing chain and bearing of the engine are assembled in the guide ring, and the vibration, noise and impact of the whole engine stroke are transmitted to the guide plate and the regulator unit. The role of the regulator unit is to keep the unloading ratio of the engine within the specified range by constantly adjusting its unloader, and the adjusted vibration noise and impact are transmitted to the external heat sink. The main role of the guide plate is to help the engine timing chain transfer the correct power, so that the engine power can be transmitted to each part at the correct Angle
