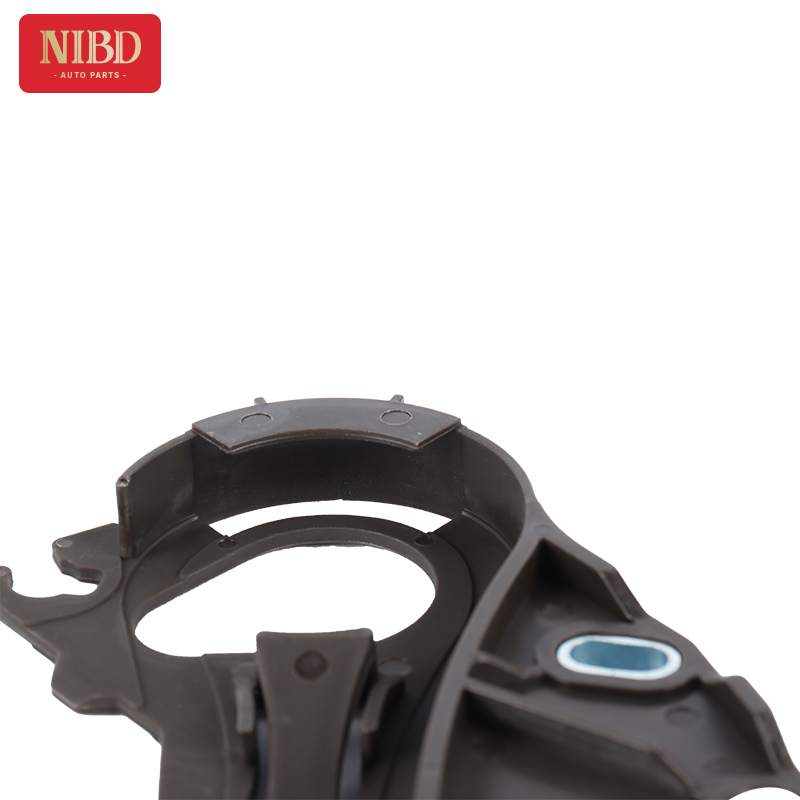

A timing belt guide plate, also known as a timing belt tensioner or timing belt pulley, is an essential component in an engine's timing system. It is designed to guide and maintain proper tension on the timing belt, which controls the synchronization of the engine's valves and pistons. The timing belt guide plate is typically a metal or plastic plate that is mounted on a spring-loaded arm. It helps to ensure that the timing belt remains in the correct position and properly engages with the engine's camshaft and crankshaft gears.
The primary function of a timing belt guide plate is to prevent the timing belt from slipping or jumping teeth on the camshaft or crankshaft gears. It applies pressure to the timing belt, keeping it taut and ensuring precise timing of the engine's valves and pistons. The guide plate also helps to absorb any vibrations or shocks that may occur during engine operation, reducing noise and improving overall engine performance. It is crucial for the timing belt guide plate to be properly aligned and adjusted to maintain the correct tension on the timing belt.
Proper maintenance and care of timing belt guide plates are essential to ensure their longevity and optimal performance. Regular inspections for signs of wear, such as worn-out bearings or excessive play, are recommended. If any issues are detected, it is important to replace the timing belt guide plate promptly to prevent further damage and ensure the proper functioning of the timing system. Additionally, proper lubrication of the guide plate's bearings is crucial to reduce friction and prevent overheating. Using the recommended lubricants and following the manufacturer's guidelines for lubrication intervals are important for the longevity and efficiency of the timing belt guide plate. Timing belt guide plates are critical components in an engine's timing system, providing proper tension and precise timing. With proper maintenance, they contribute to the overall performance and durability of the engine.
